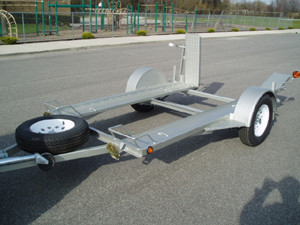

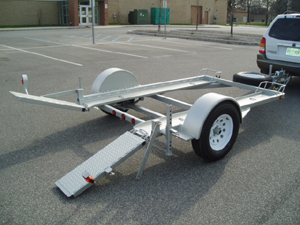

length with ramps in the vertical position is 15', 18' length with
ramps extended, 7'-4 1/2" width, 14" height to the top of
the tire channel.

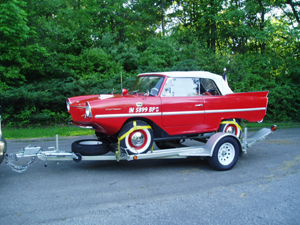

weight of 800 lbs, 3,500 lb. gross weight, so the useable capacity
is approximately 2,700 lb. The Amphicar weighs approximately 2,300
3"x 3/16" tongue tubes and frame, 3" 3.2 lb channel

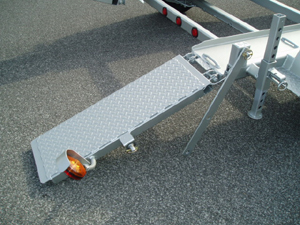

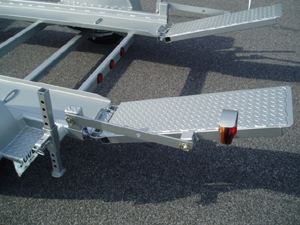

X members, 12" channel tire rails, ramps w/ floor plate, 2"
class III coupler, axle position gives approx 10% tongue weight.
white modular wheels, 205/75R15 load range C straight tread radials,
1,820 lbs. capacity each, fenders included
lb. lead springs
door is open while loading to insure perfect centering on trailer
long tongue to avoid damage in the event of a jack knife and allow
for tight turning
"all enclosed" lighting system; enclosed and weatherproof
wiring, 2 brake/run/turn tail light mounted on ramps, 1 marker light
on each side, 2 marker lights in the rear
to allow loading of a non-running car onto the trailer using a "come-a-long"

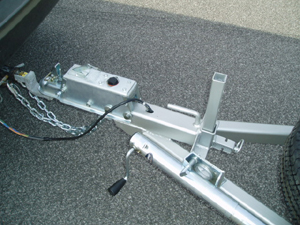

plate tongue jack
safety chains, proof coil 30
in rear of frame to allow for drainage of Amphicar without draining
onto the trailer frame
primer and "Rust-No-More" paint
can be left on the trailer without the tow vehicle and moved by hand
can be loaded and unloaded without the tow vehicle attached, using
the optional rear support stabilizer stands
us for prices.
